Description

The Tuojiang Mega Bridge on the Chengdu-Dazhou-Wanzhou High-Speed Railway is located in Ziyang City, Sichuan Province. The total length of the bridge is 1606.054 meters. It is a crucial control project for the entire Chengda-Wanzhou High-speed Railway.The main bridge over the Tuojiang River is a concrete rigid frame cable-stayed bridge with a span of (42+109+320+109+42) meters, with a tower-pier-beam consolidation system.

The cantilever segments of the bridge's concrete box girder are constructed using symmetrical cantilever formwork, while the mid-span is constructed by joining steel box girders. This requires the cantilever formwork to meet the requirements for concrete girder casting and steel girder installation. The Boyoun technical team has made numerous technical innovations and optimizations based on the project's characteristics, ensuring a smooth construction.

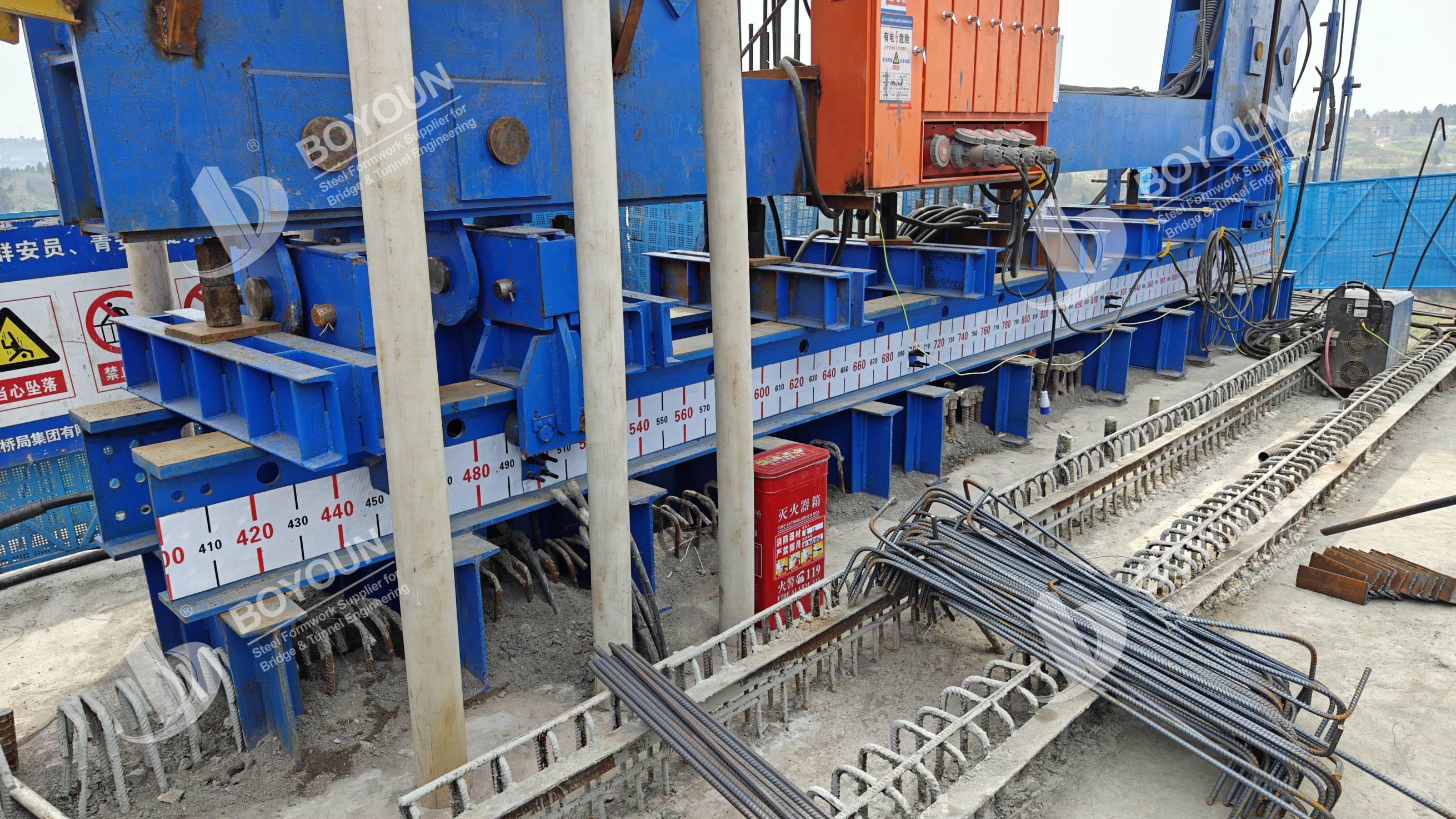

Boyoun Form Traveller Features

1. Traveling system: The track features a long double-rail lightweight design, with the front sliding support and anti-reversing wheel adopting a roller design, combined with long-stroke traveling cylinders, making the travel process more efficient and stable. At the same time, the anti-reversing wheel adopts a double-row roller anti-reversing system and an added anti-capsize system to ensure safer traveling.

2. Main truss structure: Since the continuous beam is a single-box double-cell structure, resulting in the heaviest pouring block being 516.94 tons and the steel and concrete section being 795 tons. The design team uses welded box-shaped members and higher-strength Q355 material to meet the strength and stiffness requirements. At the same time, the mid-diagonal brace structure was added to ensure the safety of lifting the steel and concrete section.

3. Lifting of the steel box girder: After constructing the casting section, the formwork system can be converted into a steel girder lifting system on-site. With intelligent lifting jacks, the lifting speed can reach 8-10m/h, which is efficient and safe. At the same time, the design of special jacks is equipped with X and Y coordinate translation and fine adjustment systems, ensuring the accuracy of the steel girder installation.

Professional service is crucial for the smooth project development. Boyoun service engineers monitor the entire process, providing guidance for key processes such as formwork system assembly and travel, and their efficient service has been widely recognized and highly praised by the project, resulting in a commendation letter commending the exceptional performance of Boyoun service engineers.

In the future, Boyoun will continue to adhere to a customer-centric approach, focus on customer needs, excellent quality, valuable service, and a trusted brand to increase customer cost savings and efficiency, and work in collaboration with customers.
